REDUCED RISK OF POLE DAMAGE
Gate poles are positioned clear of the net so implements are captured before damage is caused
LONGER LASTING NETS
There is no metal frame around the gates for the hammer to impact and cause damage to the net
NET RAILS
Net height is consistent and reduces stretching
HIGH WIND RATING
Net can remain erected all season which reduces labour operating time and cost
FEWER SUPPORT POLES
Provides better spectator visibility and is more aesthetically pleasing
DISC SHAPED CLEATS
Round Rope Cleats that also prevent the Net from being caught, which reduces potential damage
REDUCED INSTALLATION COST
Less Ground Sleeves and Footings to install
NET TIE BACK
Poles are positioned to avoid guide ropes being tied back
NET RETAINING ROPES
Ropes are easily tensioned to Ground Anchors
HINGED POLES
Poles are assembled laying down and raised with block and tackle (which is supplied)
Photo: XXI Gold Coast Commonwealth Games, 2018
Photo: Barlow Park, Cairns (XXI Commonwealth Games Legacy Cage)
Photo: University of Iowa, USA
Photo: Ern Clarke Athletics Centre, Western Australia
A THROW CAGE THAT’S BUILT TO SURVIVE THE ELEMENTS
Thor 10 is World Athletics certified and suitable for top level competition. This cage proves to be easy to maintain and is built to last so you won’t be searching for a replacement cage.
THE CAGE YOU’LL WANT TO USE FOR YOUR SPORTING STADIUM

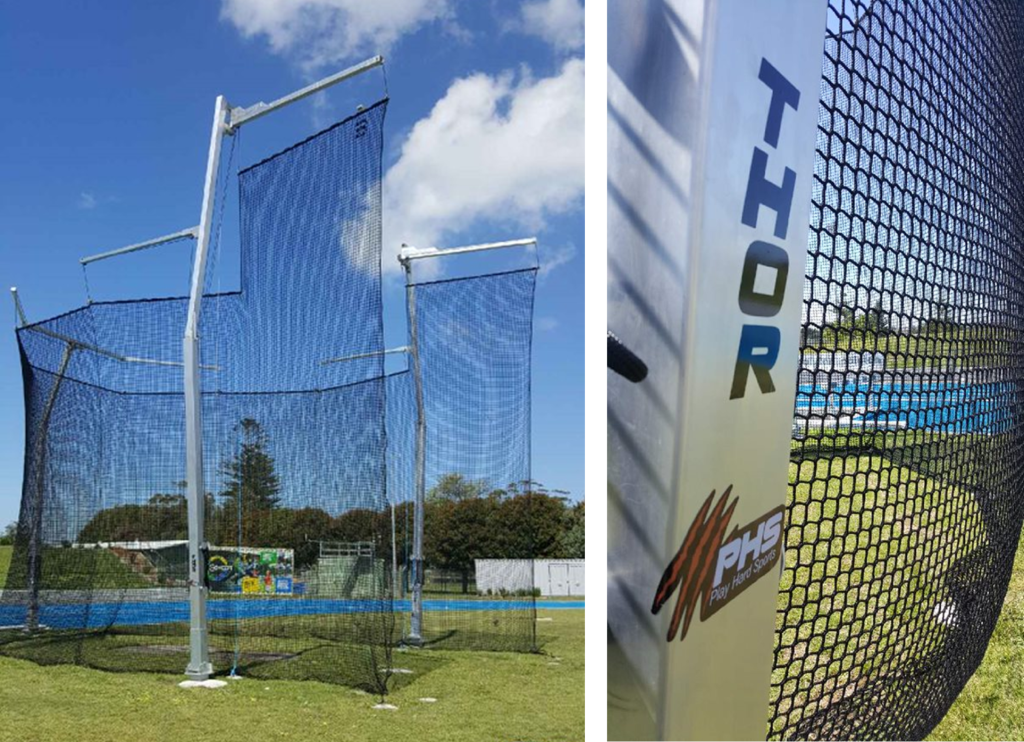

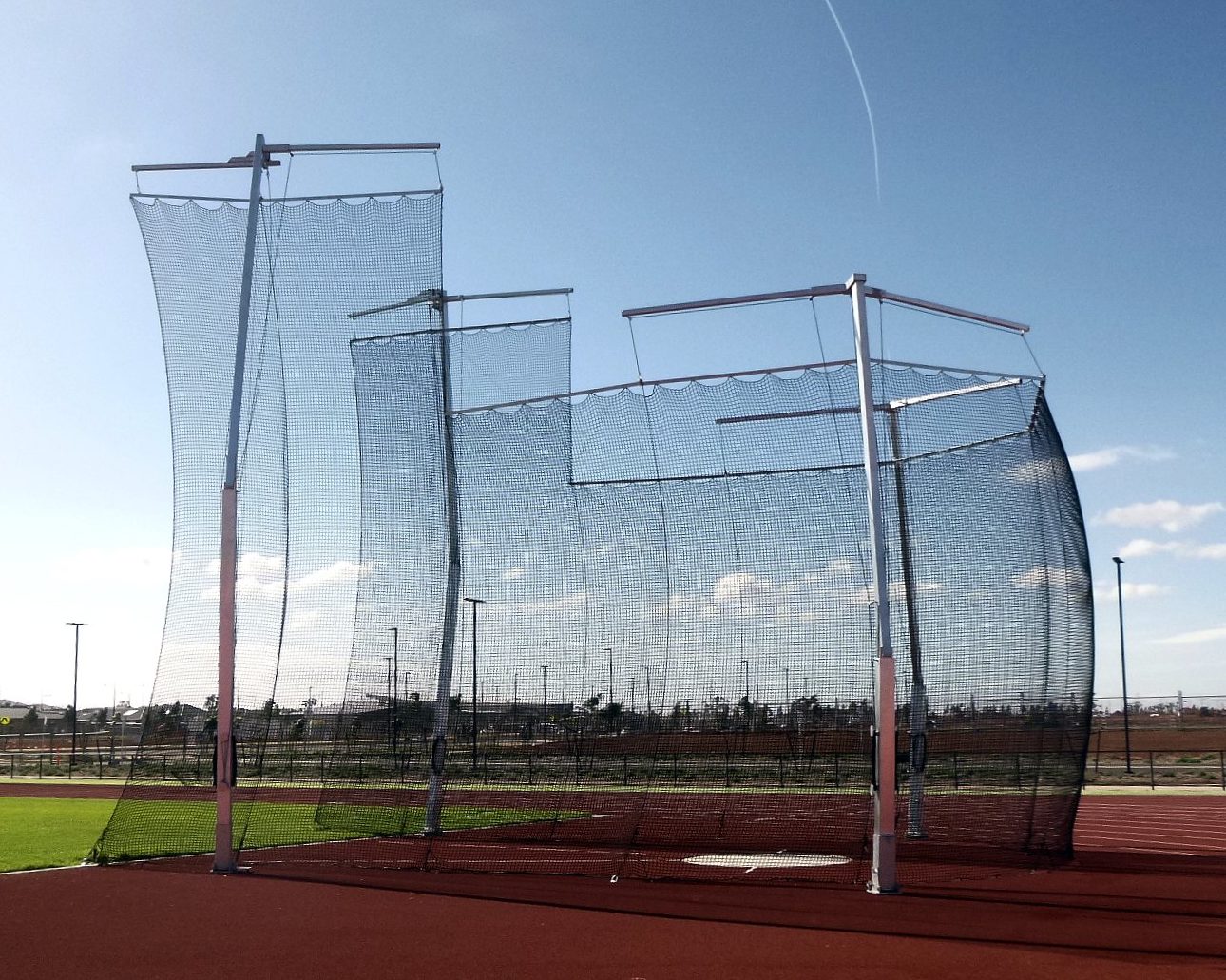

The Thor 10 is a four pole setup with steel poles on hinged base plates for easy installation, along with steel ground sleeves. The ground area has only the four support poles, offering great spectator visibility of the thrower during events.
Net height is set at 7m for the main perimeter of the cage and is held in place with retaining ropes all around the perimeter. Nets are set away from the structure to avoid any contact between the hammer and the poles. This negates rebound towards the thrower and reduces any chance of damage to the poles as well as the net. Gates are set 10m high and can be opened and closed independently with the gate ropes.
The Thor 10 has a Wind Rating to 100 km/h which means that the nets can be left in place during strong winds unlike many other cages. This reduces any manpower required to manage the cage and further reduces any cost involved.
Note: Thor10D is the throwing cage suitable for a double circle application.
REDUCED RISK OF POLE DAMAGE
Gate poles are positioned clear of the net so implements are captured before damage is caused
LONGER LASTING NETS
There is no metal frame around the gates for the hammer to impact and cause damage to the net
NET RAILS
Net height is consistent and reduces stretching
HIGH WIND RATING
Net can remain erected all season which reduces labour operating time and cost
FEWER SUPPORT POLES
Provides better spectator visibility and is more aesthetically pleasing
DISC SHAPED CLEATS
Round Rope Cleats that also prevent the Net from being caught, which reduces potential damage
REDUCED INSTALLATION COST
Less Ground Sleeves and Footings to install
NET TIE BACK
Poles are positioned to avoid guide ropes being tied back
NET RETAINING ROPES
Ropes are easily tensioned to Ground Anchors
EASY GATE MOVEMENT
The Gate Ropes clip onto Ground Anchors in the open, closed and Discus position

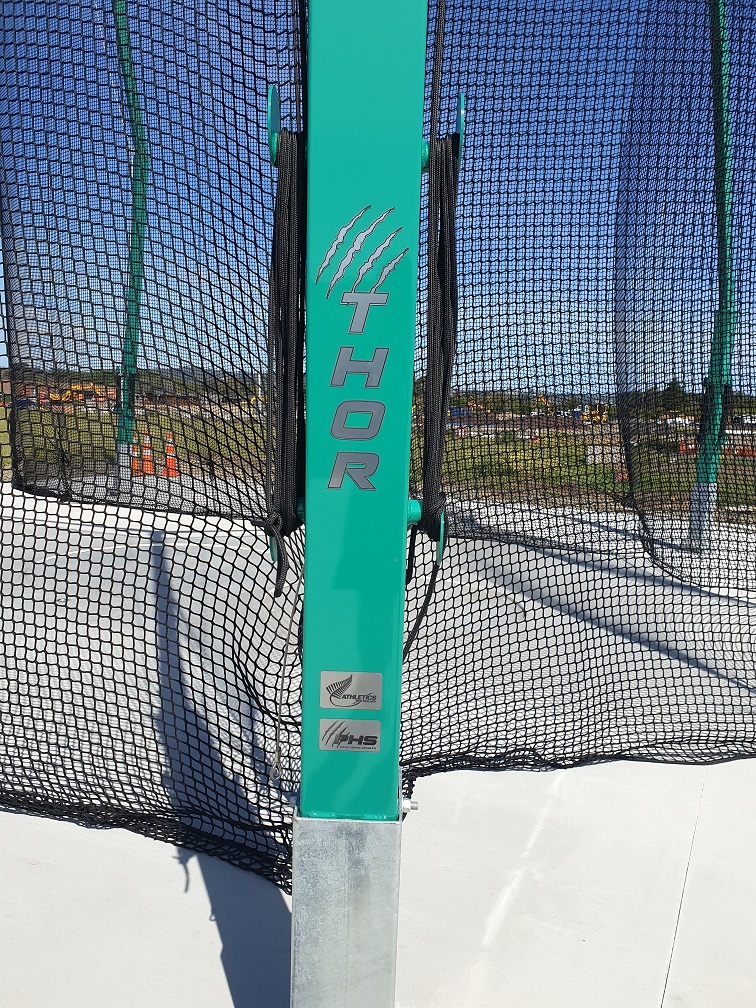

HINGED POLES
Poles are assembled laying down and raised with block and tackle (which is supplied)
Photo: Guernsey, United Kingdom
Photo: Ipswich & District Athletics Centre, QLD
Photo: New Zealand Athletics

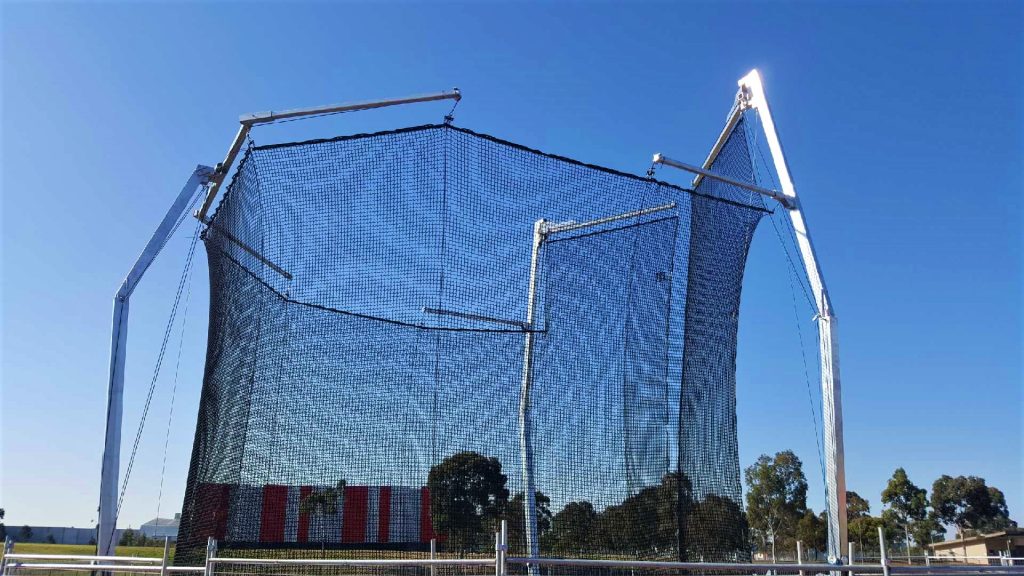

The Thor 9 Hammer Throw Cage is a unique Patent Design #9,889,366 B2 that is set to change the future of Hammer Throw cages.
This efficient setup makes use of only 3 support poles leaving the ground area free from obstructions. This provides a clear view for spectators and also means the cage has minimal visual impact when not in use.
The 3 support poles are all on hinged base plates making installation even easier. The 7m high perimeter net is anchored with retaining ropes and is set away from the poles to reduce any chance of damage to the net and poles. The 9m high gates can be opened and closed easily with the gate ropes.
The Thor9 cage is much cheaper to maintain than other types of cages. This cage is wind rating to 100 km/h which means that the nets can be left in place during strong winds unlike many other cages. Not having to lower and re-raise the nets constantly reduces the manpower required to manage the cage and ultimately reduces any ongoing cost.
Thor9 is World Athletics Certified and is built for long term use.
Spec Summary:
9m high x 3.2m long gates that pivot 4.2m forward of circle centre. 7m high perimeter net. World Athletics certified, for non-stadium type venues
This in ground circles has a diameter of 2.135m is made using 75 x 5mm Aluminium, where it is constructed in 2 halves with reinforced rods. This holds the shape of the circle for strength and longevity.
The circle is then Hot Dip Galvanised and coated White

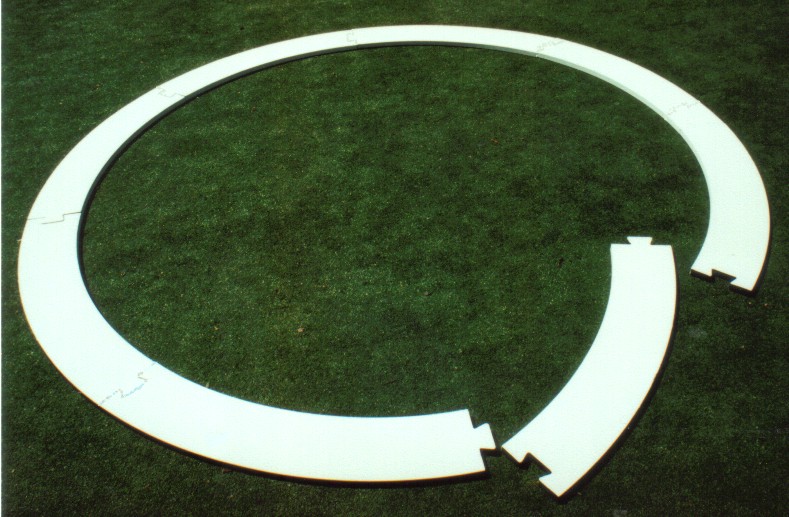

Note: Alternatively a TDS30 discus circle 2.5m diameter can be used with THM25 conversion circle.
This conversion circle consists of 8 pieces and converts a 2.5m Discus Circle to 2.135m for Hammer Throw use.
Made using 20mm thick all weather synthetic material, they fit together with interlocking panels.
Coloured Blue Finish
*WORLD ATHLETICS CERTIFIED*
This hammer trolley holds 12 balls with a holder for each hammer handle, along with buggy wheels and a fold down handle.
Alternate Colours Available – Product is finished with a Blue Coating
This Trolley holds 6 hammers, 6 shots and 12 discus. Supplied with drop down handle and buggy wheels.
